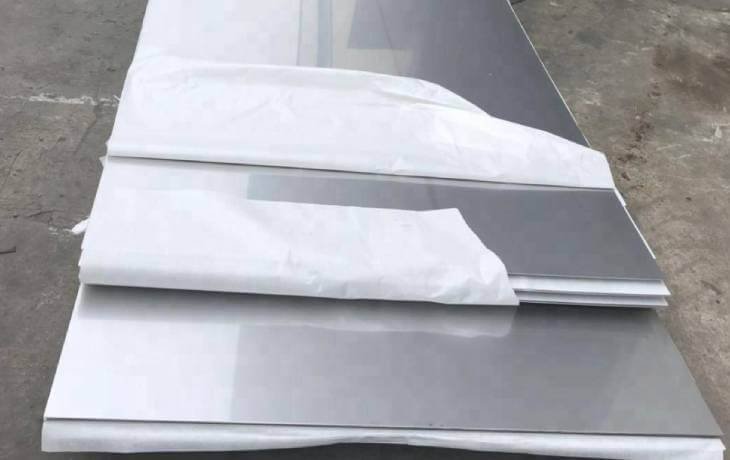

Ranflex Metals is an esteemed producer, supplier, and exporter of Stainless Steel 409 Sheets and Plates in Mumbai, India. We create these sheets and plates in a variety of sizes, dimensions, thicknesses, and specifications, as well as in customized sizes according to the needs of diverse industries. Stainless Steel 409 is a Ferritic steel that delivers robust mechanical properties and excellent resistance to corrosion at high temperatures. This type is commonly identified as chromium stainless steel. SS 409 Plates demonstrate remarkable resistance to both exhaust gas and atmospheric corrosion, surpassing that of 410 martensitic grades which contain 12 percent chromium and 3CR12. SS 409 Plates provide cost-effective corrosion resistance along with good formability. The typical 11% chromium content enhances corrosion resistance compared to carbon steel. Balanced with an addition of titanium (Ti) and low carbon levels to prevent austenite formation, Type 409 alloy is generally non-hardenable when subjected to annealing temperatures and during welding.
Stainless Steel
409
Sheets/Plates
SS 409 Sheets/Plates Exporter, 409 Stainless Steel Sheets, Stainless Steel 1.4512 Sheets & Plates, SS 409 Plates, Stainless Steel S40900 Sheets and Plates, ASME SA240 SS 409 Plates, ASTM A240 Stainless Steel 409 Sheets, Stainless Steel 409 Sheet/Plate Supplier in Mumbai, India.
Austenitic Stainless Steel 409 Plates provide durability against scaling at temperatures reaching 675 degrees C during continuous usage, and up to 815 degrees C in intermittent situations. These temperatures relate to particular service conditions. SS 409 can undergo annealing within a temperature span of 790 to 900 degrees C, after which air cooling should be performed. SS 409 Plates cannot achieve hardness through thermal processing. 409 stainless steel sheets and plates are susceptible to mild corrosion, which restricts the application of steel for decorative reasons.
SS 409 Cold Rolled Sheets, Stainless Steel 409 Hot Rolled Sheets, SS 409 Chequered Plates, Stainless Steel 409 Shim Sheets, SS 409 Perforated Sheets, SUS 409 Sheets and Plates, Stainless Steel 409 Industrial Sheets/Plates Supplier in Mumbai.
409 Stainless Steel Sheets demonstrate effective resistance to wet corrosion from chlorides, sulfates, and numerous organic acids, making them suitable for various automotive exhaust uses. SS 409 Sheets find application in a wide range of industries including automotive and truck exhaust systems, tubular manifolds, agricultural spreaders, gas turbine exhaust silencers, heat exchangers, and fuel filters. The overall corrosion resistance of Type 409 parallels that of Type 410, significantly outperforming carbon steel products in the majority of applications.
We offer different test certificates together with our products as per EN 10204/3. 1B, a complete radiography test report, third-party testing report, raw material certification, etc. to guarantee that damage-free products are supplied to our customers.
Stainless Steel 409 Sheets & Plates Specification
| Standard | ASTM A240, ASME SA240 |
| Dimensions | ASTM, ASME, and API |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Thickness | 4mm-100mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface Finish | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
Types Of Stainless Steel 409 Sheets & Plates
SS 409 Hot Rolled Sheets
ASTM A240 SS 409 HR Sheets, UNS S40900 Hot Rolled Sheet, 1.4512 Hot Rolled Sheets, SS 409 Hot Rolled Sheets Exporter, Stainless Steel 409 Hot Rolled Sheets Supplier, SS 409 Hot Rolled Sheets Supplier in Mumbai/India.
SS 409 Cold Rolled Sheets
ASTM A240 SS 409 CR Sheets, UNS S40900 Cold Rolled Sheet, 1.4512 Cold Rolled Sheets, SS 409 Cold Rolled Sheets Exporter, Stainless Steel 409 Cold Rolled Sheets Supplier, SS 409 Cold Rolled Sheets Supplier in Mumbai/India.
SS 409 Hot Rolled Plates
ASTM A240 SS 409 HR Plates, UNS S40900 Hot Rolled Plate, 1.4512 Hot Rolled Plates, SS 409 Hot Rolled Plates Exporter, Stainless Steel 409 Hot Rolled Plates Supplier, SS 409 Hot Rolled Plates Supplier in Mumbai/India.
SS 409 Cold Rolled Plates
ASTM A240 SS 409 CR Plates, UNS S40900 Cold Rolled Plate, 1.4512 Cold Rolled Plates, SS 409 Cold Rolled Plates Exporter, Stainless Steel 409 Cold Rolled Plates Supplier, SS 409 Cold Rolled Plates Supplier in Mumbai/India.
SS 409 Galvanized Sheets & Plates
ASTM A240 SS 409 Galvanized Sheets & Plates, UNS S40900 Galvanized Sheets & Plates, 1.4512 Galvanized Sheets & Plates, SS 409 Galvanized Sheets Exporter, Stainless Steel 409 Galvanized Plates Supplier, SS 409 Galvanized Sheets & Plates Supplier in Mumbai/India.
SS 409 Shim Sheets & Plates
ASTM A240 SS 409 Shim Sheets & Plates, UNS S40900 Shim Sheets & Plates, 1.4512 Shim Sheets & Plates, SS 409 Shim Sheets Exporter, Stainless Steel 409 Shim Plates Supplier, SS 409 Shim Sheets & Plates Supplier in Mumbai/India.
Equivalent Grades of A240 Stainless Steel 409 Sheets & Plates
| Grade | WERKSTOFF NR. | AISI | UNS | AFNOR | BS | GOST | JIS |
| SS 409 | 1.4512 | 409 | S40900 | Z3CT12 | 409 S 19 | SUH 409 | - |
Stainless Steel 409 Sheets & Plates Chemical Properties
| Grade | C | Ni strong> | Si | S | Mn | P | Cr | Ti | |
| SS 409 | Min | - | - | - | - | - | - | 10.5 | 6x C |
| MAX | 0.08 | 0.5 | 1.00 | 0.045 | 1.00 | 0.045 | 11.75 | 0.75 | |
SS 409 Sheets & Plates Mechanical Properties
| Tensile Strength(MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Rockwell B (HRB) max | Brinell (HB) max |
| 450 | 240 | 25 | 75 | 131 |
