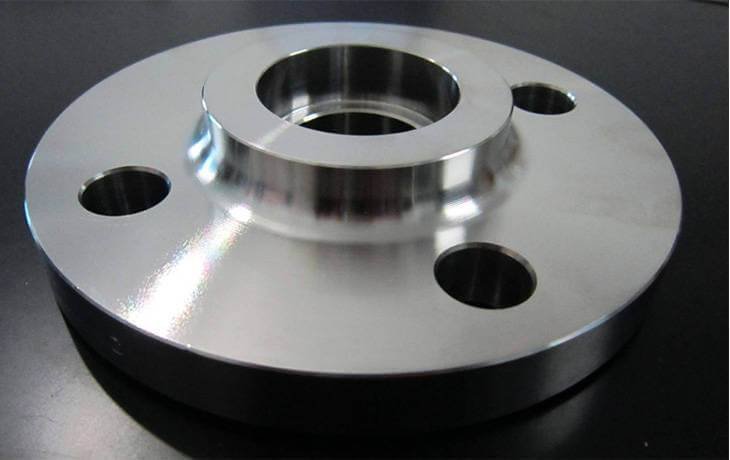

Ranflex Metals is a prominent manufacturer, supplier, and exporter of SS 304 Flanges. Stainless Steel 304 flanges are highly versatile and come in various ranges that are utilized and have a strong demand in the market due to their attributes and superior quality. Stainless steel 304 Flanges are the most flexible stainless steel flanges because their joinability and corrosion resistance deliver optimal all-around performance in stainless steel. Ranflex Metals provides it at a very reasonable price to the customers.
Stainless Steel
304
Flanges
ASTM A182 Stainless Steel 304 Flange, 304 Stainless Steel Flange, Stainless Steel S30400 Flanges, India, Steel 304 Flanges Exporter, Stainless Steel 304 Flanges Manufacturer in Mumbai, ANSI B16.5 Stainless Steel 304 Flanges, Stainless Steel 1.4301 Flanges, SS 304 Flanges
We are supplying stainless steel 304 flanges with outstanding characteristics such as elevated tensile strength, effective corrosion resistance, minimal maintenance, robust construction, and an extended service life, and demonstrate remarkable resistance to corrosion in numerous corrosive settings. Because of the Chromium and Nickel content in it, it displays enhanced resistance to oxidation and corrosion under high-temperature conditions.
ASME SA182 SS 304 Flanges, Stainless Steel F304 Pipe Flanges, SS 304 Raised Face Flanges, SS 304 Flate Face Flange, Stainless Steel 304 Screwed Flange, SUS 304 Flanges, Stainless Steel 304 Flanges Supplier in Mumbai.
The construction and design of stainless steel 304 flanges render them appropriate and dependable for their applications and functions, which involve extreme temperature and pressure. Our experts guarantee the use of high-quality raw materials to create these flanges. These flanges demand minimal upkeep and do not deteriorate in humid conditions. Our production team meticulously designs each Stainless Steel 304 flange in accordance with global standards and specifications.
Ranflex Metals is supplying a wide range of Stainless Steel 304 flanges for multiple industrial applications including power generation, oil and gas sectors, paper and pulp sectors, food processing sectors, and numerous others. We guarantee to supply all test certificates and necessary documentation upon product delivery.
Before delivering products to the customer, the product goes under numerous tests and gets finalized by our experts. Our expert team is working to make the product more vulnerable, efficient, or beneficial to our customers. Our company is offering numerous ways of packaging and shipping as per the requirements of our esteem clients. In the end, to make the delivery more efficient of the Flanges without causing any damage, we packed the products with standard packaging material and providing fast delivery to our customer. At reasonable rates, we are offering excellent quality and service to our esteemed clients.
Stainless Steel 304 Flanges Specification
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges |
| Size | 1/2" (15 NB) to 48" (1200NB) |
| Class/Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
Types Of Stainless Steel 304 Flanges
SS 304 Slip On Flanges
ASTM A182 SS 304 Slip On Flanges, UNS S30400 Slip On Flanges, 1.4301 Slip On Flange, SS 304 Slip On Flanges Exporter, SS 304 SORF Flanges Supplier, SS 304 Slip On Flanges Manufacturer in Mumbai/India.
SS 304 Weld Neck Flanges
ASTM A182 SS 304 Weld Neck Flanges, UNS S30400 Weld Neck Flanges, 1.4301 Weld Neck Flange, SS 304 Weld Neck Flanges Exporter, SS 304 WNRF Flanges Supplier, SS 304 Weld Neck Flanges Manufacturer in Mumbai/India.
SS 304 Blind Flanges
ASTM A182 SS 304 Blind Flanges, UNS S30400 Blind Flanges, 1.4301 Blind Flange, SS 304 Blind Flanges Exporter, Stainless Steel 304 BLRF Flanges Supplier, SS 304 Blind Flanges Manufacturer in Mumbai/India.
SS 304 Socket Weld Flanges
ASTM A182 SS 304 Socket Weld Flanges, UNS S30400 Socket Weld Flanges, 1.4301 Socket Weld Flange, SS 304 Socket Weld Flanges Exporter, SS 304 SWRF Flanges Supplier, SS 304 Socket Weld Flanges Manufacturer in Mumbai/India.
SS 304 Ring Type Joint Flanges
ASTM A182 SS 304 Ring Type Joint Flanges, UNS S30400 Ring Type Joint Flanges, 1.4301 Ring Type Joint Flange, SS 304 Ring Type Joint Flanges Exporter, SS 304 RTJ Flanges Supplier, SS 304 Ring Type Joint Flanges Manufacturer in Mumbai/India.
SS 304 Forged Flanges
ASTM A182 SS 304 Forged Flanges, UNS S30400 Forged Flanges, 1.4301 Forged Flange, SS 304 Forged Flanges Exporter, Stainless Steel 304 Forged Flanges Supplier, SS 304 Forged Flanges Manufacturer in Mumbai/India.
SS 304 Long Weld Neck Flanges
ASTM A182 SS 304 Long Weld Neck Flanges, UNS S30400 Long Weld Neck Flanges, 1.4301 Long Weld Neck Flange, SS 304 Long Weld Neck Flanges Exporter, SS 304 RFLWN Flanges Supplier, SS 304 Long Weld Neck Flanges Manufacturer in Mumbai/India.
SS 304 Lap Joint Flanges
ASTM A182 SS 304 Lap Joint Flanges, UNS S30400 Lap Joint Flanges, 1.4301 Lap Joint Flange, SS 304 Lap Joint Flanges Exporter, SS 304 LJRF Flanges Supplier, SS 304 Lap Joint Flanges Manufacturer in Mumbai/India.
SS 304 Reducing Flanges
ASTM A182 SS 304 Reducing Flanges, UNS S30400 Reducing Flanges, 1.4301 Reducing Flange, SS 304 Reducing Flanges Exporter, Stainless Steel 304 Reducing Flanges Supplier, SS 304 Reducing Flanges Manufacturer in Mumbai/India.
Stainless Steel 304 WNRF Flange Size Chart
| Nominal Pipe Size | Outside Diameter of Flanges | Thickness of Flanges | Diameter of Raised Face | Diameter of Hub at Base | Length Thru Hub | Diameter or Bore | Diameter of Hub at Bevel | Radius of Fillet | Depth of Socket | |||
| Welding Neck | Slip-On Threaded Socket | Lap Joint | Slip-on Socket | Lap Joint | ||||||||
| O | Q | R | X | Y | Y | Y | Wv | B | H | r | Z | |
| 1/2 | 3-1/2 | 7/16 | 1-3/8 | 1-3/16 | 1-7/8 | 5/8 | 5/8 | .88 | .90 | .84 | 1/8 | 3/8 |
| 3/4 | 3-7/8 | 1/2 | 1-11/16 | 1-1/2 | 2-1/16 | 5/8 | 5/8 | 1.09 | 1.11 | 1.05 | 1/8 | 7/16 |
| 1 | 4-1/4 | 9/16 | 2 | 1-15/16 | 2-3/16 | 11/16 | 11/16 | 1.36 | 1.38 | 1.32 | 1/8 | 1/2 |
| 1-1/4 | 4-5/8 | 5/8 | 2-1/2 | 2-5/16 | 2-1/4 | 13/16 | 13/16 | 1.70 | 1.72 | 1.66 | 3/16 | 9/16 |
| 1-1/2 | 5 | 11/16 | 2-7/8 | 2-9/16 | 2-7/16 | 7/8 | 7/8 | 1.95 | 1.97 | 1.90 | 1/4 | 5/8 |
| 2 | 6 | 3/4 | 3-5/8 | 3-1/16 | 2-1/2 | 1 | 1 | 2.44 | 2.46 | 2.38 | 5/16 | 11/16 |
| 2-1/2 | 7 | 7/8 | 4-1/8 | 3-9/16 | 2-3/4 | 1-1/8 | 1-1/8 | 2.94 | 2.97 | 2.88 | 5/16 | 3/4 |
| 3 | 7-1/2 | 15/16 | 5 | 4-1/4 | 2-3/4 | 1-3/16 | 1-3/16 | 3.57 | 3.60 | 3.50 | 3/8 | 13/16 |
| 3-1/2 | 8-1/2 | 15/16 | 5-1/2 | 4-13/16 | 2-13/16 | 1-1/4 | 1-1/4 | 4.07 | 4.10 | 4.00 | 3/8 | 7/8 |
| 4 | 9 | 15/16 | 6-3/16 | 5-5/16 | 3 | 1-5/16 | 1-5/16 | 4.57 | 4.60 | 4.50 | 7/16 | 15/16 |
| 5 | 10 | 15/16 | 7.5/16 | 6-7/16 | 3-1/2 | 1-7/16 | 1-7/16 | 5.66 | 5.69 | 5.56 | 7/16 | 15/16 |
| 6 | 11 | 1 | 8-1/2 | 7-9/16 | 3-1/2 | 1-9/16 | 1-9/16 | 6.72 | 6.75 | 6.63 | 1/2 | 1-1/16 |
| 8 | 13-1/2 | 1-1/8 | 10-5/8 | 9-11/16 | 4 | 1-3/4 | 1-3/4 | 8.72 | 8.75 | 8.63 | 1/2 | 1-1/4 |
| 10 | 16 | 1-3/16 | 12-3/4 | 12 | 4 | 1-15/16 | 1-15/16 | 10.88 | 10.92 | 10.75 | 1/2 | 1-5/16 |
| 12 | 19 | 1-1/4 | 15 | 14-3/8 | 4-1/2 | 2-3/16 | 2-3/16 | 12.88 | 12.92 | 12.75 | 1/2 | 1-9/16 |
| 14 | 21 | 1-3/8 | 16-1/4 | 15-3/4 | 5 | 2-1/4 | 3-1/8 | 14.14 | 14.18 | 14.00 | 1/2 | 1-5/8 |
| 16 | 23-1/2 | 1-7/16 | 18-1/2 | 18 | 5 | 2-1/2 | 3-7/16 | 16.16 | 16.19 | 16.00 | 1/2 | 1-3/4 |
| 18 | 25 | 1-9/16 | 21 | 19-7/8 | 5-1/2 | 2-11/16 | 3-13/16 | 18.18 | 18.20 | 18.00 | 1/2 | 1-15/16 |
| 20 | 27-1/2 | 1-11/16 | 23 | 22 | 5-11/16 | 2-7/8 | 4-1/16 | 20.20 | 20.25 | 20.00 | 1/2 | 2-1/8 |
| 24 | 32 | 1-7/8 | 27-1/4 | 26-1/8 | 6 | 3-1/4 | 4-3/8 | 24.25 | 24.25 | 24.00 | 1/2 | 2-1/2 |
Weight of Stainless Steel 304 Flanges in KG
| Pipe Normal Diam. | O.D. Flange | Thk. Of Flange Min | Diam. of Hub |
Diameter of Raised Face | Length Hub.Y | Thread Length | Diam. of Bolt Circle |
Diam. of Bolt Holes |
Number of Bolts |
Diam. of Bolts (inch) |
KG | LB | |
| inch | dn | O | C | X | G | Y | T | BC | BH | BN | BD | ||
| 1/2" | 15 | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 15.70 | 60.50 | 15.80 | 4 | 1/2" | 0.4 | 0.9 |
| 3/4" | 20 | 98.50 | 12.70 | 38.10 | 42.90 | 15.70 | 15.70 | 69.90 | 15.80 | 4 | 1/2" | 0.7 | 1.5 |
| 1" | 25 | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 17.50 | 79.30 | 15.80 | 4 | 1/2" | 0.8 | 1.8 |
| 1-1/4" | 32 | 117.50 | 15.70 | 58.70 | 63.50 | 20.60 | 20.60 | 88.90 | 15.80 | 4 | 1/2" | 1.2 | 2.6 |
| 1-1/2" | 40 | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 22.40 | 98.60 | 15.80 | 4 | 1/2" | 1.5 | 3.3 |
| 2" | 50 | 152.50 | 19.10 | 77.70 | 91.90 | 25.40 | 25.40 | 120.70 | 19.10 | 4 | 5/8" | 2.3 | 5.1 |
| 2-1/2" | 65 | 178.00 | 22.40 | 90.40 | 104.60 | 28.40 | 28.40 | 139.70 | 19.10 | 4 | 5/8" | 3.7 | 8.1 |
| 3" | 80 | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 30.20 | 152.40 | 19.10 | 4 | 5/8" | 4.1 | 9 |
| 3-1/2" | 90 | 216.00 | 23.90 | 122.20 | 139.70 | 31.80 | 31.80 | 177.80 | 19.10 | 8 | 5/8" | 5.1 | 11.2 |
| 4" | 100 | 228.50 | 23.90 | 134.90 | 157.20 | 33.30 | 33.30 | 190.50 | 19.10 | 8 | 5/8" | 5.9 | 13 |
| 5" | 125 | 254.00 | 23.90 | 163.60 | 185.70 | 36.60 | 36.60 | 215.90 | 22.40 | 8 | 3/4" | 7 | 15.4 |
| 6" | 150 | 279.50 | 25.40 | 192.00 | 215.90 | 39.60 | 39.60 | 241.30 | 22.40 | 8 | 3/4" | 8.4 | 18.5 |
| 8" | 200 | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 44.50 | 298.50 | 22.40 | 8 | 3/4" | 13 | 28.6 |
| 10" | 250 | 406.50 | 30.20 | 304.80 | 323.90 | 49.30 | 49.30 | 362.00 | 25.40 | 12 | 7/8" | 18 | 39.5 |
| 12" | 300 | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 55.60 | 431.80 | 25.40 | 12 | 7/8" | 29 | 64 |
| 14" | 350 | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 57.20 | 476.30 | 28.50 | 12 | 1" | 39 | 86 |
| 16" | 400 | 597.00 | 36.60 | 457.20 | 469.90 | 63.50 | 63.50 | 539.80 | 28.50 | 16 | 1" | 47 | 103 |
| 18" | 450 | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 68.30 | 577.90 | 31.80 | 16 | 1 1/8" | 57 | 126 |
| 20" | 500 | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 73.20 | 635.00 | 31.80 | 20 | 1 1/8" | 76 | 167 |
| 24" | 600 | 813.00 | 47.80 | 663.40 | 692.20 | 82.60 | 82.60 | 749.30 | 35.10 | 20 | 1 1/4" | 97 | 214 |
Equivalent Grades of A182 Stainless Steel 304 Flanges
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
Stainless Steel 304 Flanges Chemical Properties
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | - | 8 – 11 | - |
SS 304 Flanges Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
