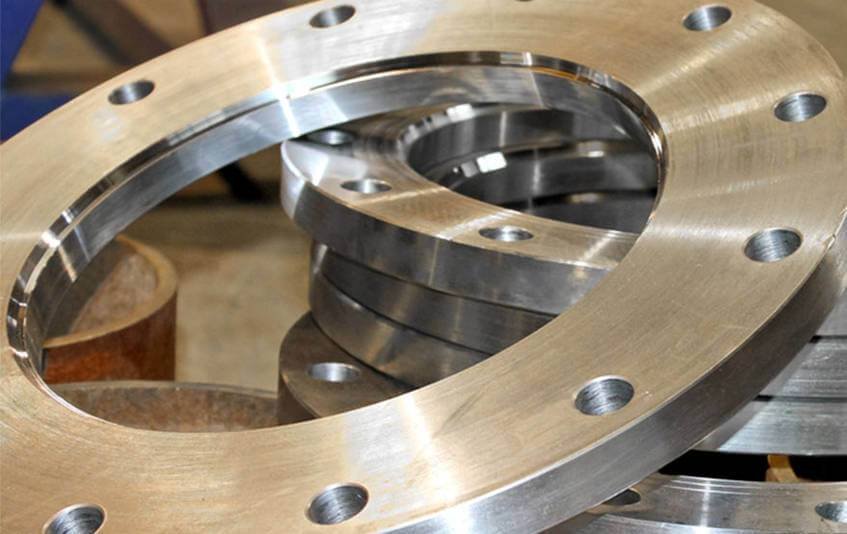

Titanium Gr 2 Flanges Manufacturer, Exporter in Mumbai, India

Ranflex Metals is a prominent and distinguished manufacturer, supplier, stockist, and exporter of a diverse array of products utilizing cutting-edge technologies, a skilled workforce, and a dedicated approach to meeting customer needs. Ranflex Metals presents a comprehensive selection of flanges in various dimensions, sizes, and shapes according to international standards, produced using the highest quality raw materials. We additionally offer tailored flanges based on the requirements of the customer.

Titanium

Gr 2

Flanges

Titanium Gr 2 Flanges Exporter, ANSI B16.5 Titanium Gr 2 Flanges, Titanium 3.7035 Flanges, Titanium Alloy Gr 2 Flanges, ASTM B381 Titanium Alloy Gr 2 Flange, Titanium R50400 Flanges, Titanium Gr 2 Flanges Manufacturer in Mumbai, India.

Titanium grade 2 flanges are widely used in numerous sectors such as aerospace, automotive, chemical manufacturing, power generation, oil, and gas extraction, among others. Titanium grade 2 is regarded as an excellent choice for flange material because of its unique physical, mechanical, and chemical properties. It exhibits outstanding weldability, tensile strength, and formability.

Titanium Gr 2 Pipe Flanges, Titanium Gr 2 Raised Face Flanges, Titanium Alloy Gr 2 Threaded Flanges, Titanium Gr 2 Screwed Flange, Titanium Gr 2 Flate Face Flange, ASME SB381 Titanium Gr 2 Flanges, Titanium Alloy Gr 2 Flanges Supplier in Mumbai.

Titanium grade 2 possesses a lower density, which renders it highly sought after in situations where weight is a critical factor. The properties of strength and resistance to corrosion in Titanium Grade 2 also render it particularly appropriate for uses within the marine, chemical processing, and desalination sectors. Titanium grade 2 shows resistance to attacks from humid chlorides and metallic chlorides, chlorite and hypochlorite solutions, nitric and chromic acids, organic acids, along with various gaseous industrial applications.

Ranflex Metals is a leading producer of Titanium grade 2 flanges in accordance with international standards and guidelines. We attain the necessary qualities of raw materials through various heat treatment processes including cold forming, hot working, and annealing at specific temperatures. These flanges are produced with a skilled workforce and state-of-the-art machinery, overseen by a well-organized supervisory team, aided and directed by specialists. We utilize the highest quality raw material for our manufacturing processes. Our highly skilled quality control team is dedicated to conducting numerous quality tests on the Titanium grade 2 flanges to ensure superior performance. Customers can easily recognize the process since we maintain records such as raw material test reports, material traceability documentation, heat treatment charts, etc. , as Ranflex Metals is associated with precision. Ranflex Metals guarantees the delivery of your order ahead of the deadline, using appropriate and secure packaging labeled with the grade, lot number, size, degree, and our trademark to prevent damage. Upon special requests, we are also able to provide custom marking according to the customer's specifications.

Titanium Alloy Gr 2 Flanges Specification

Standard	ASTM B381 / ASME SB381
Dimensions	ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN
Standard	ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges
Size	1/2" (15 NB) to 48" (1200NB)
Class/Pressure	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64
Flange Face Type	Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Types Of Titanium Gr 2 Flanges

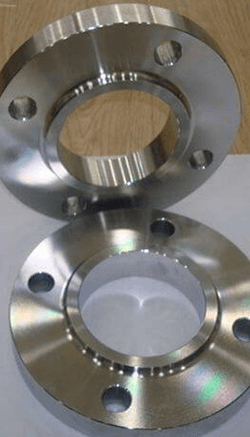

Titanium Alloy Gr 2 Slip On Flanges — Titanium Gr 2 Slip On Flanges

ASTM B381 Titanium Gr 2 Slip On Flanges, UNS R50400 Slip On Flanges, 3.7035 Slip On Flange, Titanium Gr 2 Slip On Flanges Exporter, Titanium Gr 2 SORF Flanges Supplier, Titanium Gr 2 Slip On Flanges Manufacturer in Mumbai/India.

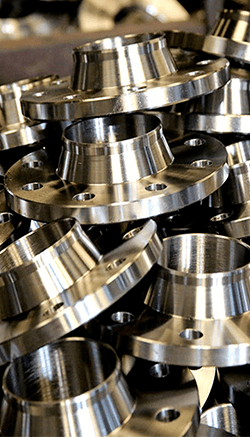

Titanium Alloy Gr 2 Weld Neck Flanges — Titanium Gr 2 Weld Neck Flanges

ASTM B381 Titanium Gr 2 Weld Neck Flanges, UNS R50400 Weld Neck Flanges, 3.7035 Weld Neck Flange, Titanium Gr 2 Weld Neck Flanges Exporter, Titanium Gr 2 WNRF Flanges Supplier, Titanium Gr 2 Weld Neck Flanges Manufacturer in Mumbai/India.

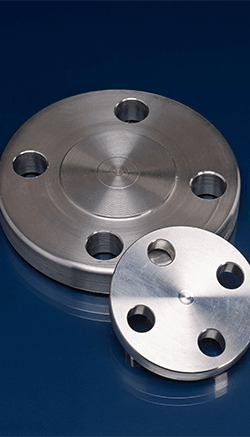

Titanium Alloy Gr 2 Blind Flanges — Titanium Gr 2 Blind Flanges

ASTM B381 Titanium Gr 2 Blind Flanges, UNS R50400 Blind Flanges, 3.7035 Blind Flange, Titanium Gr 2 Blind Flanges Exporter, Titanium Gr 2 BLRF Flanges Supplier, Titanium Gr 2 Blind Flanges Manufacturer in Mumbai/India.

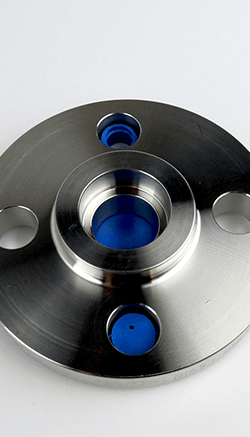

Titanium Alloy Gr 2 Socket Weld Flanges — Titanium Gr 2 Socket Weld Flanges

ASTM B381 Titanium Gr 2 Socket Weld Flanges, UNS R50400 Socket Weld Flanges, 3.7035 Socket Weld Flange, Titanium Gr 2 Socket Weld Flanges Exporter, Titanium Gr 2 SWRF Flanges Supplier, Titanium Gr 2 Socket Weld Flanges Manufacturer in Mumbai/India.

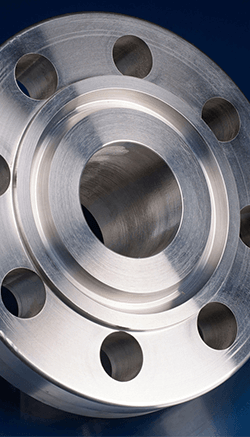

Titanium Alloy Gr 2 Ring Type Joint Flanges — Titanium Gr 2 Ring Type Joint Flanges

ASTM B381 Titanium Gr 2 Ring Type Joint Flanges, UNS R50400 Ring Type Joint Flanges, 3.7035 Ring Type Joint Flange, Titanium Gr 2 Ring Type Joint Flanges Exporter, Titanium Gr 2 RTJ Flanges Supplier, Titanium Gr 2 Ring Type Joint Flanges Manufacturer in Mumbai/India.

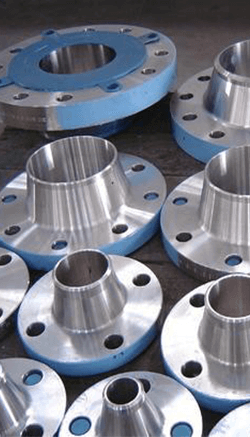

Titanium Alloy Gr 2 Forged Flanges — Titanium Gr 2 Forged Flanges

ASTM B381 Titanium Gr 2 Forged Flanges, UNS R50400 Forged Flanges, 3.7035 Forged Flange, Titanium Gr 2 Forged Flanges Exporter, Titanium Gr 2 Forged Flanges Supplier, Titanium Gr 2 Forged Flanges Manufacturer in Mumbai/India.

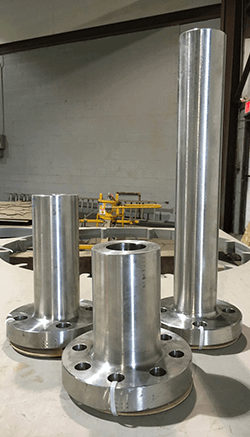

Titanium Alloy Gr 2 Long Weld Neck Flanges — Titanium Gr 2 Long Weld Neck Flanges

ASTM B381 Titanium Gr 2 Long Weld Neck Flanges, UNS R50400 Long Weld Neck Flanges, 3.7035 Long Weld Neck Flange, Titanium Gr 2 Long Weld Neck Flanges Exporter, Titanium Gr 2 RFLWN Flanges Supplier, Titanium Gr 2 Long Weld Neck Flanges Manufacturer in Mumbai/India.

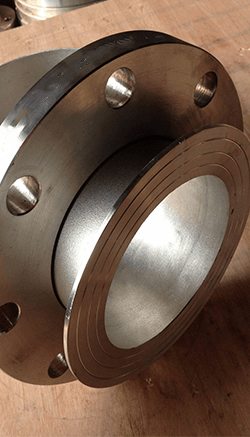

Titanium Alloy Gr 2 Lap Joint Flanges — Titanium Gr 2 Lap Joint Flanges

ASTM B381 Titanium Gr 2 Lap Joint Flanges, UNS R50400 Lap Joint Flanges, 3.7035 Lap Joint Flange, Titanium Gr 2 Lap Joint Flanges Exporter, Titanium Gr 2 LJRF Flanges Supplier, Titanium Gr 2 Lap Joint Flanges Manufacturer in Mumbai/India.

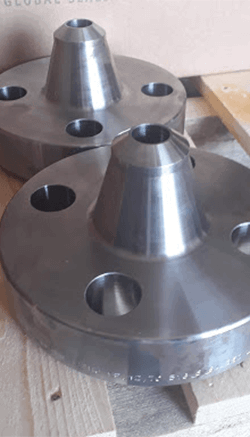

Titanium Alloy Gr 2 Reducing Flanges — Titanium Gr 2 Reducing Flanges

ASTM B381 Titanium Gr 2 Reducing Flanges, UNS R50400 Reducing Flanges, 3.7035 Reducing Flange, Titanium Gr 2 Reducing Flanges Exporter, Titanium Gr 2 Reducing Flanges Supplier, Titanium Gr 2 Reducing Flanges Manufacturer in Mumbai/India.

Low Pressure Grade 2 Titanium Plate Flange Data Sheet

Nominal Pipe Size		Diameter		Bore		Bolt Circle Diameter		Bolt Diameter		Bolt Holes	Flange Thickness		Weight in lbs./kg.
Nominal Pipe Size		Diameter		Bore		Bolt Circle Diameter		Bolt Diameter		Bolt Holes	Flange Thickness		Slip-On		Blind
in	mm	in	mm	in	mm	in	mm	in	mm	#	in	mm	lb	kg	lb	kg
1/2″	15	3.50	88.90	0.88	22.35	2.38	60.33	0.50	12.70	4	0.38	9.53	0.48	0.22	0.51	0.23
3/4″	20	3.88	98.43	1.09	27.69	2.75	69.85	0.50	12.70	4	0.38	9.53	0.59	0.27	0.65	0.29
1″	25	4.25	107.95	1.36	34.54	3.13	79.38	0.50	12.70	4	0.38	9.53	0.70	0.32	0.79	0.36
1-1/4″	32	4.63	117.48	1.70	43.18	3.50	88.90	0.50	12.70	4	0.38	9.53	0.81	0.37	0.95	0.43
1-1/2″	40	5.00	127.00	1.95	49.53	3.88	98.43	0.50	12.70	4	0.38	9.53	0.94	0.43	1.12	0.51
2″	50	6.00	152.40	2.44	61.98	4.75	120.65	0.63	15.88	4	0.38	9.53	1.33	0.60	1.62	0.73
2-1/2″	65	7.00	177.80	2.94	74.68	5.50	139.70	0.63	15.88	4	0.50	12.70	2.44	1.11	2.99	1.36
3″	80	7.50	190.50	3.57	90.68	6.00	152.40	0.63	15.88	4	0.50	12.70	2.64	1.20	3.46	1.57
3-1/2″	90	9.00	228.60	4.57	116.08	7.50	190.50	0.63	15.88	8	0.50	12.70	3.70	1.68	4.90	2.22
4″	100	10.00	254.00	5.66	143.76	8.50	215.90	0.75	19.05	8	0.63	15.88	4.95	2.24	7.50	3.40
5″	125	11.00	279.40	6.72	170.69	9.50	241.30	0.75	19.05	8	0.63	15.88	5.58	2.53	9.20	4.17
6″	150	13.50	342.90	8.72	221.49	11.75	298.45	0.75	19.05	8	0.63	15.88	8.01	3.63	14.00	6.35
8″	200	16.00	406.40	10.88	276.35	14.25	361.95	0.88	22.23	12	0.75	19.05	12.00	5.44	24.50	11.11
10″	250	19.00	482.60	12.88	327.15	17.00	431.80	0.88	22.23	12	0.75	19.05	17.50	7.94	33.50	15.19

150 lb. Grade 2 Titanium Flange Data Sheet

												Bore Diameter				Length Through Hub
Nominal Pipe Size		Flange Outside Diameter		Flange Thickness		Hub Dia. At Base		Raised Face Dia.		Hub Dia. At Welding Point		Welding Neck		Slip On		Welding Neck		Slip On
in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm
1/2″	15	3.50	88.90	0.44	11.11	1.19	30.16	1.38	34.93	0.84	21.34	0.62	15.75	0.88	22.35	1.88	47.63	0.63	15.88
3/4″	20	3.88	98.43	0.50	12.70	1.50	38.10	1.69	42.86	1.05	26.67	0.82	20.83	1.09	27.69	2.06	52.39	0.63	15.88
1″	25	4.25	107.95	0.56	14.29	1.94	49.21	2.00	50.80	1.32	33.53	1.05	26.67	1.36	34.54	2.19	55.56	0.69	17.46
1-1/4″	32	4.63	117.48	0.63	15.88	2.31	58.74	2.50	63.50	1.66	42.16	1.38	35.05	1.70	43.18	2.25	57.15	0.81	20.64
1-1/2″	40	5.00	127.00	0.69	17.46	2.56	65.09	2.88	73.03	1.90	48.26	1.61	40.89	1.95	49.53	2.44	61.91	0.88	22.23
2″	50	6.00	152.40	0.75	19.05	3.06	77.79	3.63	92.08	2.38	60.45	2.07	52.58	2.44	61.98	2.50	63.50	1.00	25.40
2-1/2″	65	7.00	177.80	0.88	22.23	3.56	90.49	4.13	104.78	2.88	73.15	2.47	62.74	2.94	74.68	2.75	69.85	1.13	28.58
3″	80	7.50	190.50	0.94	23.81	4.25	107.95	5.00	127.00	3.50	88.90	3.07	77.98	3.57	90.68	2.75	69.85	1.19	30.16
3-1/2″	90	8.50	215.90	0.94	23.81	4.81	122.24	5.50	139.70	4.00	101.60	3.55	90.17	4.07	103.38	2.81	71.44	1.25	31.75
4″	100	9.00	228.60	0.94	23.81	5.31	134.94	6.19	157.16	4.50	114.30	4.03	102.36	4.57	116.08	3.00	76.20	1.31	33.34
5″	125	10.00	254.00	0.94	23.81	6.44	163.51	7.31	185.74	5.56	141.22	5.05	128.27	5.66	143.76	3.50	88.90	1.44	36.51
6″	150	11.00	279.40	1.00	25.40	7.56	192.09	8.50	215.90	6.63	168.40	6.07	154.18	6.72	170.69	3.50	88.90	1.56	39.69
8″	200	13.50	342.90	1.13	28.58	9.69	246.06	10.63	269.88	8.63	219.20	7.98	202.69	8.72	221.49	4.00	101.60	1.75	44.45
10″	250	16.00	406.40	1.19	30.16	12.00	304.80	12.75	323.85	10.75	273.05	10.02	254.51	10.88	276.35	4.00	101.60	1.94	49.21
12″	300	19.00	482.60	1.25	31.75	14.38	365.13	15.00	381.00	12.75	323.85	12.00	304.80	12.88	327.15	4.50	114.30	2.19	55.56
14″	350	21.00	533.40	1.38	34.93	15.75	400.05	16.25	412.75	14.00	355.60	13.25	336.55	14.14	359.16	5.00	127.00	2.25	57.15
16″	400	23.50	596.90	1.44	36.51	18.00	457.20	18.50	469.90	16.00	406.40	15.25	387.35	16.16	410.46	5.00	127.00	2.50	63.50
18″	450	25.00	635.00	1.56	39.69	19.88	504.83	21.00	533.40	18.00	457.20	17.25	438.15	18.18	461.77	5.50	139.70	2.69	68.26
20″	500	27.50	698.50	1.69	42.86	22.00	558.80	23.00	584.20	20.00	508.00	19.25	488.95	20.20	513.08	5.69	144.46	2.88	73.03
24″	600	32.00	812.80	1.88	47.63	26.13	663.58	27.25	692.15	24.00	609.60	23.25	590.55	24.25	615.95	6.00	152.40	3.25	82.55

Equivalent Grades of B381 Titanium Gr 2 Flanges

STANDARD	UNS	WERKSTOFF NR.
Titanium Gr 2	R50400	3.7035

Titanium Gr 2 Flanges Chemical Properties

Grade	C	N	O	H	Ti	Fe
Grade 2	0.10	0.03	0.25	0.015	Bal	0.30

Titanium Gr 2 Flanges Mechanical Properties

Grade	Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
Gr 2	8.90 g/cm3	1650-1670 °C	Psi – 141000 , MPa – 970	Psi – 210000 , MPa – 1450	54 %
